Navigate in Revu

Revu provides numerous methods for navigating, panning, and zooming in and out of a document.

   How to navigate the interface in Revu Video3:19

Explore the Bluebeam Revu interface and get acquainted with the different work areas and tools. Watch at Bluebeam University.

   Revu Interface and Navigating Documents Self-paced course45:00

Explore the Revu interface, customize it to your needs, and learn how to navigate and open documents efficiently. Watch at Bluebeam University.

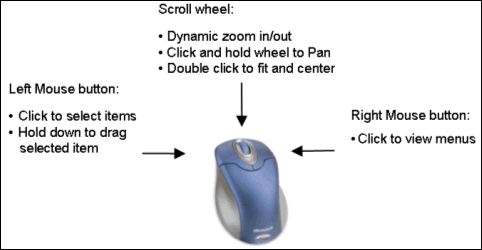

The primary method for navigating is the mouse. Revu works with all types of mice, however it is suggested that you use a 3 button mouse with a scroll wheel for the optimum performance. The following diagram identifies how the mouse buttons are used.

The scroll wheel is a convenient way to zoom in and out of a PDF, but be aware that it can also scroll up and down the page based on your current Navigation Preferences and page mode.

Double-click the scroll wheel to fit the entire PDF page to the current workspace window.

Double-click the left mouse button (or double-tap a tablet PC stylus) to display the tablet zoom control.

To scroll using the tablet zoom control, click and hold in the blue-shaded area, then drag the cursor up or down to zoom. Click outside the blue area to exit the control and pan the document.

Navigation Keyboard shortcuts:

  • Zoom out — CTRL+MINUS
  • Zoom in — CTRL+PLUS
  • Actual Size — CTRL+8
  • Fit Page — CTRL+9
  • Fit Width — CTRL+0
  • Select Zoom tool — Z
  • Toggle between Pan or Select tool and Zoom tool — SHIFT+Z

Click and hold the scroll wheel down to pan the document.

Drag the horizontal and vertical scroll bars as you would in any Windows application.

Press the LEFT ARROW, RIGHT ARROW, UP ARROW and DOWN ARROW keys.

The Navigation bar along the bottom of the workspace typically holds the Pan, Select, and Zoom tools in the center.

To zoom in on a particular area of a document, select the Zoom tool or press Z, then drag a rectangle over the desired area. Upon release, the defined area will zoom to fill the workspace.

To pan around the document, select the Pan tool or press ESC, then drag to move the view in the main workspace.

It is also possible to set the zoom level manually to a percentage, or to automatically fit the width or the whole page. To do so, select a zoom value from the zoom list and choose a specific page size percentage. To zoom to a setting rather than a percentage, choose one of the options at the bottom of the list (Actual Size, Fit Page, or Fit Width).

To jump between pages and views, use the tools on the right side of the Navigation bar. These buttons are designed to provide efficient movement between pages and views in the workspace.

Each of the buttons is explained below:

First Page: Jumps to the first page of the PDF.

Previous Page: Goes to the prior page of the document.

Page Number: Indicates the current location in the PDF.

Next Page: Goes to the next page of the current document.

Last Page: Jumps to the last page of the document.

Previous View: Goes back to the previous view in the main workspace.

Next View: Goes to the next view in the main workspace.

The Thumbnails panel is ideal for navigating large PDFs with many pages. Open the Thumbnails panel and select a page's thumbnail to jump directly to it.

   How to use the Thumbnails panel Video3:59

Learn how to use the Thumbnails panel in Revu. Watch at Bluebeam University.

Many PDFs come with bookmarks for quick navigation to sections of the document. Find a document's bookmarks on the Bookmarks panel. To jump to a bookmark's location, click it.

Flags provide a mechanism for easily navigating to specific pages and places in a PDF and are available in the Flags panel. While similar to bookmarks, flags are meant to call attention to something specific in the document and are generally added and removed more freely than bookmarks. Open the Flags panel and select a flag to jump to its location. See the Flag panel section for more information.
